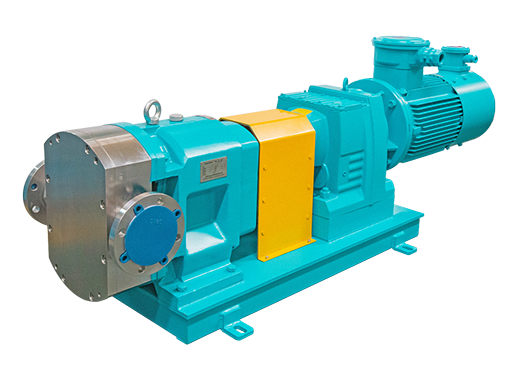

Conilowa lobe pumps, stars among displacement pumps, are designed as per API 676. With a compact structure and a small mounting space, lobe pumps are widely applied to working conditions in multiple industries. With various options for rotor materials and pump mounting types, they can better satisfy actual customer demands. Besides, thanks to the completely symmetric structure, a simple change in driving direction can achieve change in pump transfer direction. Under adoption of modular design, Conilowa lobe pumps includes 5 series and 7 models with a capacity range of 0.1~10000m³/h, a temperature range of 40℃~280℃ and the maximum discharge pressure of 2.0MPa. Pumps of a same series share the same rotor, gear, bearing, axial lining board and mechanical sealing.

Features

· Simple compact structure and beautiful appearance

· Stable and reliable running, long service life

· Low noise, high efficiency, convenient maintenance and easy replacement of wearing parts

· Unique patented products with replaceable rotor tips

· Large seal chamber fit for various mechanical seals

· Constant capacity to delivery any fluid

Working Principle

Conilowa metal lobe pumps are positive displacement pumps and the working principle is: metal rotor rotates in circumferential flow channel within pump cavity, relative movement of rotor and pump body changes working volume, thus increasing energy of fluid transported. On the contact side of rotor and fluid transported, energy directly acts on fluid in the form of static pressure, fluid is discharged due to extrusion of rotating rotor; at the same time, space is reserved on the other side to form low pressure for continuous fluid suction. 0.05~0.3mm clearance is reserved between two rotors and between rotor and pump body (as per transported fluid viscosity, characteristics, etc.), surface tension of liquid makes up for clearance leaking, mechanical seal is made of material resistive to dry wearing and with performance resistive to idling.
